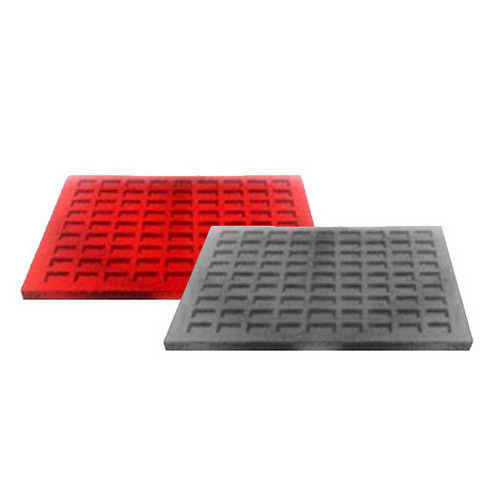

Rubber Insulating Mat

Product Description

Approx. Price: Rs 300 / Millimeter

Product Details:

Rubber Insulating Mat offered feature quality construction standards and find application in front of high voltage equipment and electrical switchboards. Providing for long service life, these mats provide suitable protection to workers from possibility of electrical shocks. Some of its features include available in a wide range of choices, providing insulation support up to 33,000 volts (33 KV), availability in any specific thickness as per customer’s requirement, are easy to clean and maintain, providing suitable resistance from oil, alkalis and others.Insulating Rubber Mats are especially designed to be used in front of switchboards and high voltage equipment. These long life mats are designed to protect operators from electrical shocks thus acting as a personal protection equipment. We offer a range of insulating mats for almost any application. We offer Insulating Rubber Mats for insulation up to 33,000 volts (33 KV) meeting the requirements of IS 15652:2006. We offer Class A (3.3 KV), Class B (11 KV) and Class C (33 KV) insulating rubber mats as per following specifications.

Specifications:

Sr No (1)	Class (2)	AC (rms) KV (3)	DC V (4)	Thickness mm	Insulation Resistance with water	Leakage Current	Di-electric Strength ac (rms) KV	Material: SBR Rubber Mats Thickness: 10mm to 50mm Size: 500mm*500mm/1000mm*1000mm
i)	A	3.3	^	2.00 ± 10%	100000 M with 5000 V meager and 1000000 M with 500 V meager	< 10µA	30	10
ii)	B	11	^	2.50 ± 10%	-do-	< 10µA	45	22
iii)	C	33	^	3.00 ± 10%	-do-	< 10µA	65	36
