DIN 20022- 1SN (Excees SAE R1) Single Wire Braid
98 INR/Meter
Product Details:
- Shape Round
- Color Black
- Cover Synthetic Rubber Weather, Oil and abrasion resistant
- Reinforcement 1 high tensile steel wire braid
- Material Rubber
- Warranty 12 Months
- Click to View more
X
DIN 20022- 1SN (Excees SAE R1) Single Wire Braid Price And Quantity
- 50 Kilograms
- 98 INR/Meter
DIN 20022- 1SN (Excees SAE R1) Single Wire Braid Product Specifications
- Round
- 1 high tensile steel wire braid
- 12 Months
- Black
- Rubber
- Synthetic Rubber Weather, Oil and abrasion resistant
DIN 20022- 1SN (Excees SAE R1) Single Wire Braid Trade Information
- Cash in Advance (CID) Cash Advance (CA)
- 10000 Kilograms Per Day
- 1 Week
- Western Europe Australia Eastern Europe Middle East Central America South America Asia North America Africa
- All India
Product Description
Approx. Price: Rs 98 / MeterProduct Details:
| Color | Black |
R1 – (Brand Name: ARROWLINE & GLOBAL)

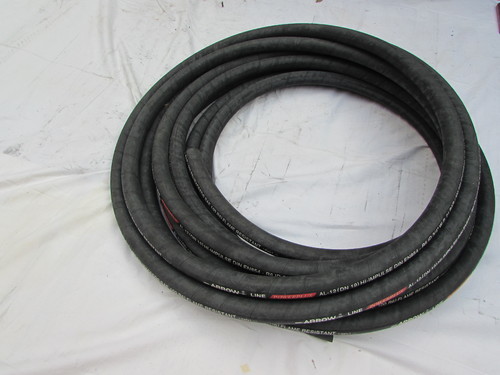

DIN 20022- 1SN (Excees SAE R1) Single Wire Braid

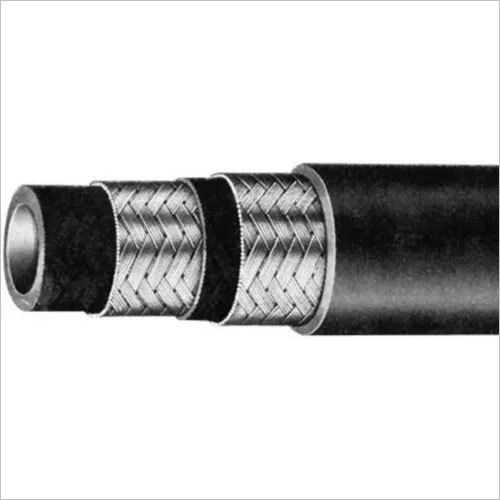

Construction - Tube: Seamless Synthetic rubber,
Reinforcement : 1 high tensile steel wire braid.
Cover: Synthetic Rubber Weather, Oil and abrasion resistant.
Temp Range -40 to 125 degree celsius
Application : High Pressure Hydraulic Oils, Air and water.
Inside Diameter | OD | Max Working Pressure | Testing Pressure | Min Bursting Pressure | Min Bend Radius | ||
Inch | MM | MM | PSI | Bar | BAR | BAR | MM |
1/4" | 6.4 | 14.1 | 3265 | 225 | 450 | 900 | 100 |
5/16" | 7.9 | 15.7 | 3120 | 215 | 430 | 860 | 105 |
3/8" | 9.5 | 18.1 | 2610 | 180 | 360 | 720 | 130 |
1/2" | 12.7 | 21.5 | 2320 | 160 | 320 | 640 | 180 |
5/8" | 15.9 | 24.7 | 1890 | 130 | 260 | 520 | 200 |
3/4" | 19 | 28.6 | 1525 | 105 | 210 | 420 | 240 |
1" | 25.4 | 36.6 | 1275 | 88 | 176 | 352 | 300 |
1-1/4" | 31.8 | 44.8 | 915 | 63 | 126 | 252 | 420 |
1-1/2" | 38.1 | 52.0 | 725 | 50 | 100 | 200 | 500 |
2" | 50.8 | 65.9 | 580 | 40 | 80 | 160 | 630 |
