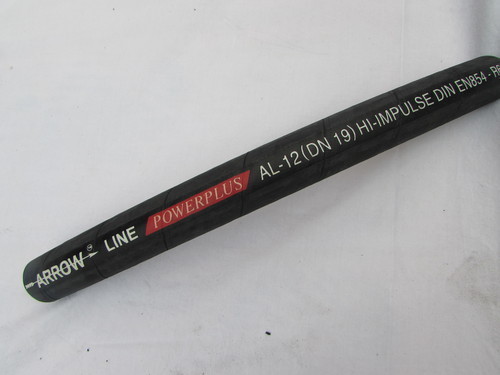

      DIN 20022- 2SN (Excees SAE R2) Double Wire Braid

      DIN 20022- 2SN (Excees SAE R2) Double Wire Braid

      125 INR/Meter
      Get a Price/Quote

      Product Details:

      • Cover Synthetic Rubber Weather, Oil and abrasion resistant
      • Shape Round
      • Color Black
      • Material Rubber
      • Warranty 12 Months
      • Click to View more
      Request to Call Back Send Inquiry
      X

      DIN 20022- 2SN (Excees SAE R2) Double Wire Braid Price And Quantity

      • 125 INR/Meter
      • 50 Kilograms

      DIN 20022- 2SN (Excees SAE R2) Double Wire Braid Product Specifications

      • Rubber
      • Round
      • 12 Months
      • Black
      • Synthetic Rubber Weather, Oil and abrasion resistant

      DIN 20022- 2SN (Excees SAE R2) Double Wire Braid Trade Information

      • Cash in Advance (CID) Cash Advance (CA)
      • 10000 Kilograms Per Day
      • 1 Week
      • Western Europe Middle East Central America South America Asia Eastern Europe North America Australia Africa
      • All India

      Product Description

      Product Details:

      ColorBlack
      Nominal Size1/2'', 3/4''
      unit Length3m, 6m

      R2 – (Brand Name: ARROWLINE & GLOBAL)

      DIN 20022- 2SN (Excees SAE R2) Double Wire Braid

      Application : High Pressure Hydraulic Oils, Air and water.

      Construction - Tube: Seamless Synthetic rubber,

      Reinforcement : 2 high tensile steel wire braid.

      Cover: Synthetic Rubber Weather, Oil and abrasion resistant.



      Temp Range -40 to 125 degree celsius

      Inside Diameter

      OD

      Max Working Pressure

      Testing Pressure

      Min Bursting Pressure

      Min Bend Radius

      Inch

      MM

      MM

      PSI

      Bar

      BAR

      BAR

      MM

      1/4"

      6.4

      15.7

      5800

      400

      800

      1600

      100

      5/16"

      7.9

      17.3

      5100

      360

      720

      1440

      115

      3/8"

      9.5

      19.7

      4800

      330

      660

      1320

      130

      1/2"

      12.7

      23.1

      4000

      280

      560

      1120

      180

      5/8"

      15.9

      26.3

      3600

      250

      500

      1000

      200

      3/4"

      19

      30.2

      3100

      215

      430

      860

      240

      1"

      25.4

      38.9

      2400

      165

      330

      660

      300

      1-1/4"

      31.8

      49.6

      1800

      125

      250

      500

      420

      1-1/2"

      38.1

      56.0

      1300

      90

      180

      360

      500

      2"

      50.8

      68.6

      1160

      80

      160

      320

      630

      Other Products in 'Hydraulic Hose Pipe' category

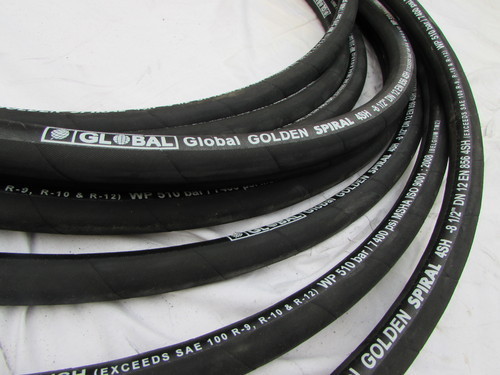

      DIN 20023- 4SH Four Spiral Tempered Hoses
      Send Inquiry
      DIN 20022- 1SN (Excees SAE R1) Single Wire Braid
      Send Inquiry

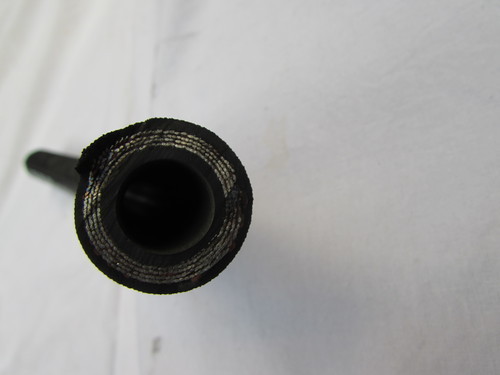

      Hydraulic Hose Pipes
      Send Inquiry

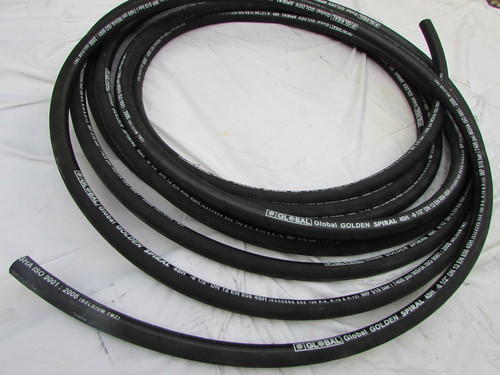

      Hydraulic Hose Pipe
